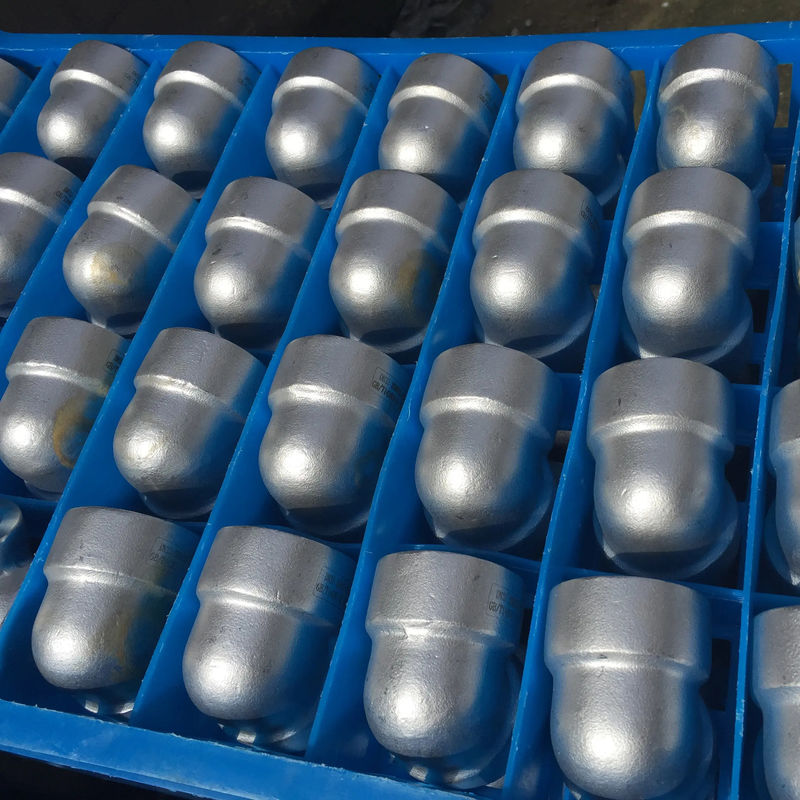

sch 10 stainless steel pipe fittings Metal Stainless Steel Pipe Fittings Sch5--Sch160
  • sch 10 stainless steel pipe fittings Metal Stainless Steel Pipe Fittings Sch5--Sch160
  • sch 10 stainless steel pipe fittings Metal Stainless Steel Pipe Fittings Sch5--Sch160
  • sch 10 stainless steel pipe fittings Metal Stainless Steel Pipe Fittings Sch5--Sch160

sch 10 stainless steel pipe fittings Metal Stainless Steel Pipe Fittings Sch5--Sch160

Place of Origin China
Brand Name Sewaly
Certification BV, TUV
Model Number 304, 304J1, 304L, 309S, 310S, 314, 316, 316L, 316Ti, 321, 347, 370, 405, 409L, 410, 410S, 430, 436, 436L, 439, 441, 443, 904L, S32305
Product Details
Application:
Industry
Standard:
ASME
Wall Thickness:
SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standards:
ASME, ANSI, ASTM, Etc.
Type:
LR/SR 30,45,60,90,180 Degree 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
Brand Name:
Metal
Color:
Silver
Highlight:

sch 10 stainless steel pipe fittings

,

stainless steel pipe fittings sch5

,

stainless steel pipe fittings sch160

Payment & Shipping Terms
Minimum Order Quantity
1Ton
Price
customization
Packaging Details
Standard export seaworthy packing: each bundle wrapped in woven bag and steel strapped, then packed in wooden case or pallet; or as required.
Delivery Time
within 7 days
Payment Terms
TT/LC
Supply Ability
25000 Ton/Tons per Month Lead Time: 5-30 Days
Product Description


sch 10 stainless steel pipe fittings Metal Stainless Steel Pipe Fittings Sch5--Sch160

Product Description

SCH 10 stainless steel pipe fittings are the standard choice for butt weld piping where wall thickness is specified to schedule 10: light enough to keep flow resistance and material cost down, heavy enough for normal process pressure. We make them in 316 and 316L, in sizes from 1/2" to 24", with wall schedules from SCH5S through SCH160S, to ASME B16.9 dimensions.

Fitting types

  • Elbows - 90° and 45°, long radius (1.5D) and short radius (1.0D), plus 180° return bends
  • Tees - equal and reducing, straight and barred
  • Reducers - concentric and eccentric
  • Couplings, caps and stub ends - for closed ends and lap joint flange assemblies

Specification

Material 316 / 316L (304, 304L, 321, 347H on request)
Wall schedule SCH5S, SCH10S, SCH40S, SCH80S, SCH160S, XXS
Size range DN15 - DN600 (1/2" - 24")
Dimensional standard ASME B16.9, ASME B16.28
Material standard ASTM A403 WP316 / WP316L
Surface finish Pickled and passivated, or bright annealed
Inspection BV, TUV; EN 10204 3.1 mill test certificate per heat
Minimum order 1 ton
Lead time 5 to 30 days, depending on size and quantity

Why schedule 10 instead of schedule 40

Schedule 10 wall thickness is roughly half that of schedule 40 at the same nominal size. For low pressure service - cooling water, compressed air, clean in place circuits, wash down lines - that means less weight, smaller welds, faster fit up and lower cost per joint, with no loss of corrosion resistance because the alloy is unchanged. The trade off is mechanical strength: schedule 10 is not the right choice for high pressure process lines, steam, or anywhere impact damage is likely. Where the pressure class governs, we supply the same fitting range in SCH40S, SCH80S and SCH160S.

316 or 316L

Both grades carry 16 to 18 percent chromium and 10 to 14 percent nickel, with 2 to 3 percent molybdenum for resistance to chlorides and organic acids. 316L caps carbon at 0.03 percent, which prevents chromium carbide precipitation in the heat affected zone during welding. That is why 316L is the default for welded assemblies in corrosive service. If the line is welded and then put into service without solution annealing, specify 316L.

Applications

Typical service includes chemical processing, oil and gas, marine and offshore, water treatment, pulp and paper, food and beverage production, and clean utility lines. In each case the fitting is matched to the pipe grade, schedule and end preparation so the weld joint stays dimensionally consistent.

Inspection and documents

Every lot ships with a mill test certificate traceable to the heat number, showing chemical composition and mechanical properties. Third party inspection by BV or TUV can be arranged before shipment. Dimensions are checked against ASME B16.9, covering center to end, outside diameter, wall thickness and angular tolerance, and the bevel is machined to the schedule ordered.

How to order

Five details are enough for an accurate quote: fitting type and angle, nominal size, schedule, material grade, and quantity. Mixed containers are routine, so elbows, tees and reducers can be combined in one shipment. Standard export packing is a wooden case or pallet, with each piece protected against transit damage.

FAQ

Can you supply SCH 10 fittings in 304 as well as 316? Yes. The same dimensional range is produced in 304, 304L, 316, 316L, 321 and 347H.

Do you supply short radius elbows? Yes, both long radius at 1.5D and short radius at 1.0D, in 45° and 90°.

What is the minimum order? One ton, with mixed sizes allowed within the same grade and schedule.

Can you arrange third party inspection? Yes, BV or TUV inspection can be scheduled before shipment.
